Description

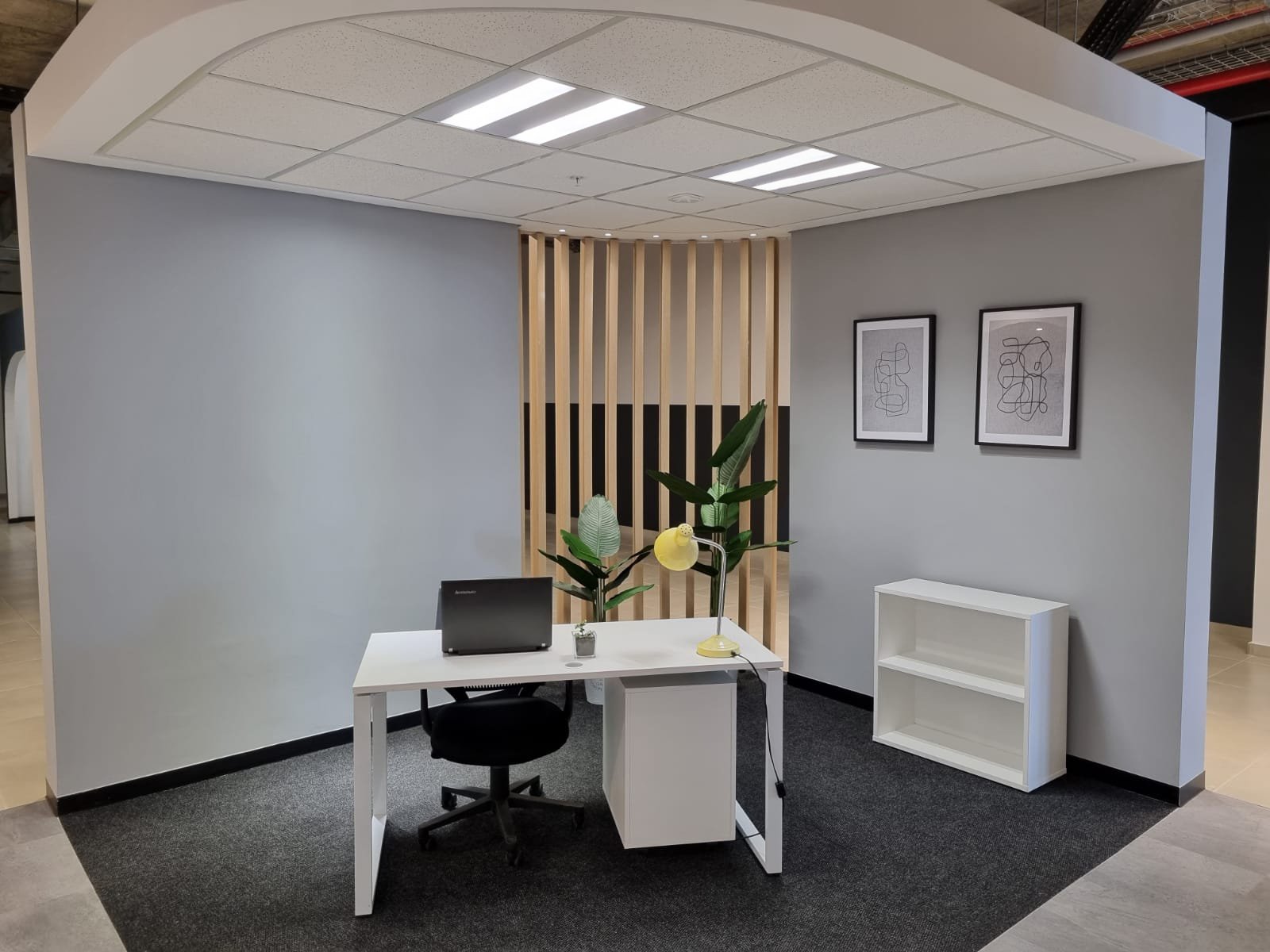

xThe Aether panel is a ceiling grid mounted LED panel available in recessed and flat versions, with 2 diffused modules. The glare-free diffusers make it suitable for offices, educational and hospital spaces with a modern and unique finish.
Features
- Modular Design For Easy Servicing And Maintenance.
- Includes 3m Cordset With 5A Plug Top.
Application Areas
- Distribution / Logistics.
- Education.
- Commercial Office.
- Retail Store.
- Healthcare.
Technical Specifications
Model
Aether.
Housing
CNC punched and formed sheet metal.
Diffuser
Precision injection moulded UV stabilised linear PMMA (Acrylic) lens.
Installation
Recessed, ceiling grid lay-in.
Lumen Maintenance
LM80 > 100,000h @35°C Ta.
LM90 > 50,000h @35°C Ta.
LM90 > 50,000h @35°C Ta.
System Efficacy
151lm/W.
Colour Temperature
3000K.
3500K.
4000K.
5000K
3500K.
4000K.
5000K
CRI
80+ (Standard).
90+ (On Request).
90+ (On Request).
IP Rating
IP20.
Operating Temperature
-20°C to 35°C.
Wattage Options
35W - 98W
Luminaire Colour
Appliance White.
Panel Sizes
Flat Diffuser
575 x 575 x 45mm.
1195 x 595 x 45mm.
Recessed Diffuser:
575 x 575 x 76mm.
1195 x 595 x 76mm.
575 x 575 x 45mm.
1195 x 595 x 45mm.
Recessed Diffuser:
575 x 575 x 76mm.
1195 x 595 x 76mm.
Technical Datasheet
Complete specifications & dimensions
