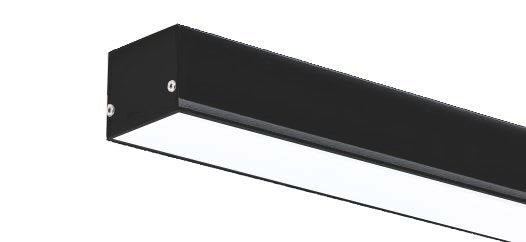

Rubicon Light Frame 55 Linear

The Light Frame 55 is a versatile diffused linear for both standalone and continuous applications. Suitable for surface, suspended and recessed mounting, the Light Frame 55 is ideal for larger modern spaces to showcase lighting as part of the environment.

Features

• Dimmable
• Constant Current
• Surge Protection
• Designed And Manufactured Locally

Application Areas

• Data Centre
• Distribution / Logistics
• Education
• Commercial Office
• Retail Store
• Shopping Centre
• Healthcare
• Bespoke

Specifications

• Housing: High quality extruded aluminium
• Diffuser: High quality extruded opalised acrylic (PMMA) LT75
• Beam Angle: 90° Diffused
• Mounting: Surface / Suspension / Recessed
• Lumen Maintenance: 50,000h @ 25°C
• System Efficacy: Up to 168lm/W
• Colour Consistency: 3-Step MacAdam
• Colour Temperature: 3000K / 3500K / 4000K / 5000K
• CRI: 80+
• IP Rating: IP20
• Standard Lengths: 220mm to 3020mm (100mm increments)
